WF-912
Intelligent Controller for Dyeing Machine

Feature

• Digital dyeing machine controller.

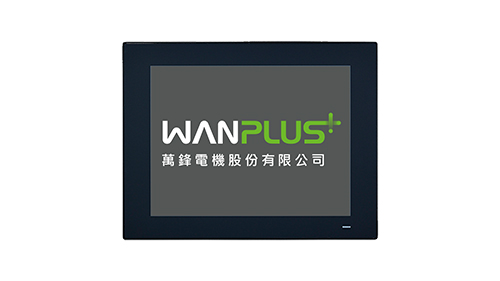

• 12.1" TFT LED all-in-one touch computer equipped with a 16:10 widescreen display.
• Low-power consumption and fanless system design.
• Supports both landscape and portrait screen orientations.
• Meets the basic operational requirements of all types of dyeing machines.
• Built-in PLC programmable logic controller allows flexible programming of dyeing process actions to maximize the characteristics and advantages of different dyeing machines.
• Provides stable and precise control of dyeing temperature and time, along with curve record query functions.
• Dosing curves can be selected as linear, progressively slower, or progressively fast at various levels.
• Maximum dyeing processes: Both the machine and the central control system store up to 9,999 dyeing processes, with each process supporting up to 150 combinable steps.
• Supports USB flash drive data writing and reading, allowing dyeing processes, parameters, and records to be exported for backup and replication.
• Supports network-based big data collection to track water, electricity, and steam consumption.
